ESS T5 Conversion Retrofit System |
 |
|
Energy Saving Solutions with T5 Technology |
| |
|
► Energy
Saving Up To 60% |
|
Energy
Saving Calculation |
|
► Environment Friendly |
| |
|
► Cost
Effective Solution |
| |
|
View
Demo Video |
|

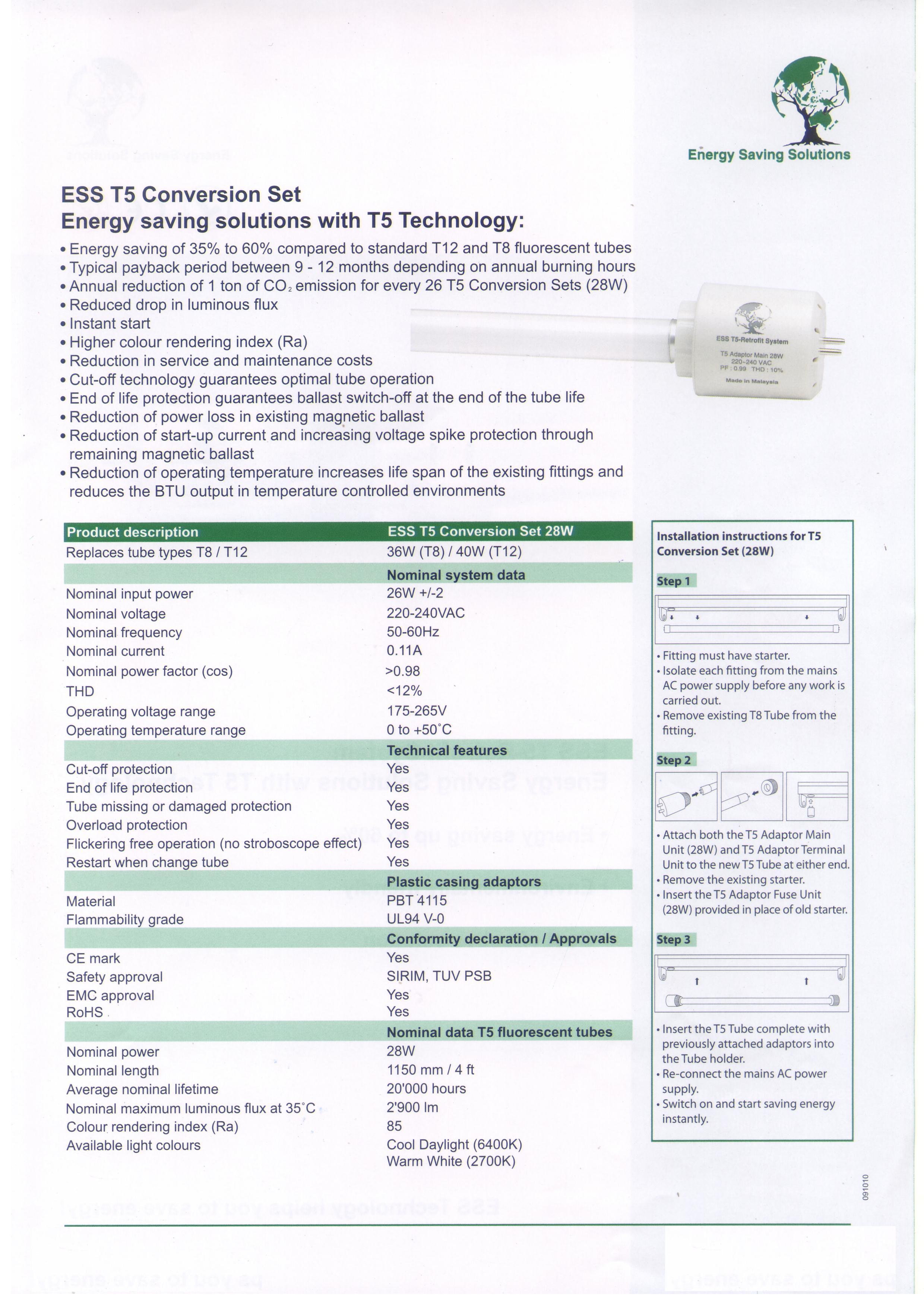

ESS T5
Conversion Kit Set Features |
| ● Energy saving of 35% to
60% compared to standard T12 and T8 florescent
tubes |
| ● Typical payback period
between 9~12 months depending on annual burning
hours |
| ● Annual reduction of 1
ton of CO2 emission for
every 26 T5 conversion sets (28Watts) |
| ● Reduce drop in luminous flux |
 |
| ● Instant start |
| ● Higher colour rendering index (Ra) |
| ● Reduction in service and maintenance
costs |
| ● Cut-off technology guarantees
optimal tube operation |
| ● End of life protection guarantees
optimal tube operation |
| ●
Reduction of power loss in existing
magnetic ballast |
| ● Reduction of start-up
current and increasing voltage spike protection
through remaining magnetic ballast |
| ● Reduction of BTU output
in temperature controlled environments |
| |
|
|
Download Catalogue |
|
|
Product
Specification |
ESS T5 Conversion Set 28W |
| Replaces tube types T8/T12 |
36W ( T8 ) / 40W (
T12 ) |
 |
|
Nominal System Data |
| Nominal input power |
26W +/-2 |
| Nominal voltage |
220~240 VAC |
| Nominal frequency |
50~60 HZ |
| Nominal current |
0.11 A |
| Nominal power factor ( Cos ) |
>0.98 |
| THD |
<12% |
| Operating voltage range |
175~265 V |
| Operating temperature range |
0 to +50º
C |
|
Technical Features |
| Cut-off protection |
Yes |
| End of life protection |
Yes |
| Tube missing or damaged
protection |
Yes |
| Overload protection |
Yes |
| Flickering free operation (no
stroboscope effect) |
Yes |
| Restart when change tube |
Yes |
|
Plastic
Casing Adaptors |
| Material |
PBT 4115 |
| Flammability grade |
Ul94 V-0 |
|
Conformity Declaration / Approvals |
| CE mark |
Yes |
| Safety approval |
SIRIM, TUV, PSB |
| EMC approval |
Yes |
| RoHS |
Yes |
|
Nominal Data T5 Fluorescent
Tubes |
| Nominal power |
28W |
| Nominal length |
1150 mm / 4 ft |
| Average nominal lifetime |
20,000 hours |
| Nominal maximum luminous flux at
35ºC |
2'900 lm |
| Colour rendering index (Ra) |
85 |
| Available light colours |
Cool Daylight
(6400K) |
| |
Warm White (2700K) |
| |
|
